Common Annotation Errors

← Back to ChoraleBricks

This page highlights common annotation errors and explains how we resolved them using Sonic Visualiser.

Missing note events/onsets

• Instruments with soft onsets often result in missing note events
• Delete the note event
• Redraw the tne note events and align them to the waveform

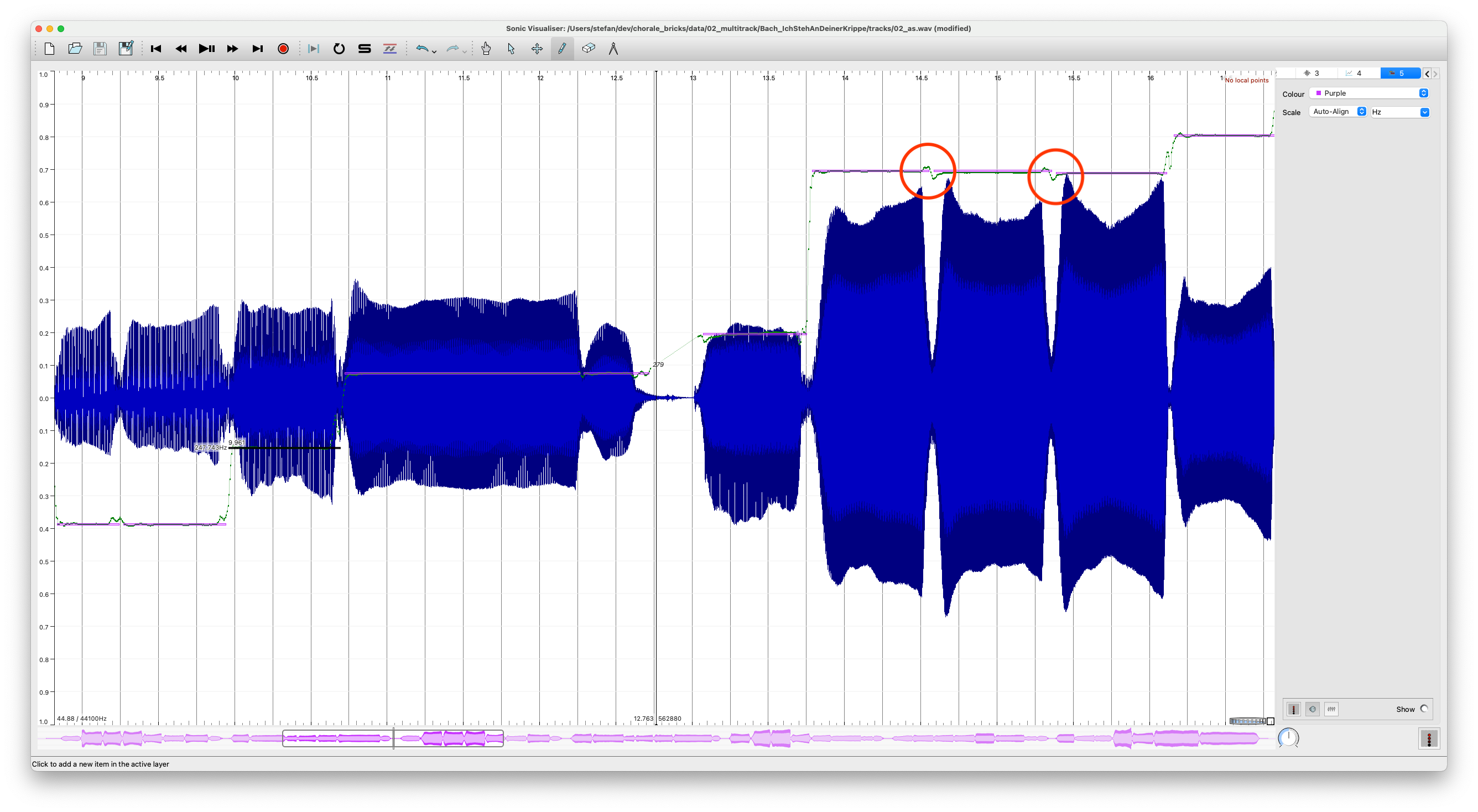

Two undetected onsets

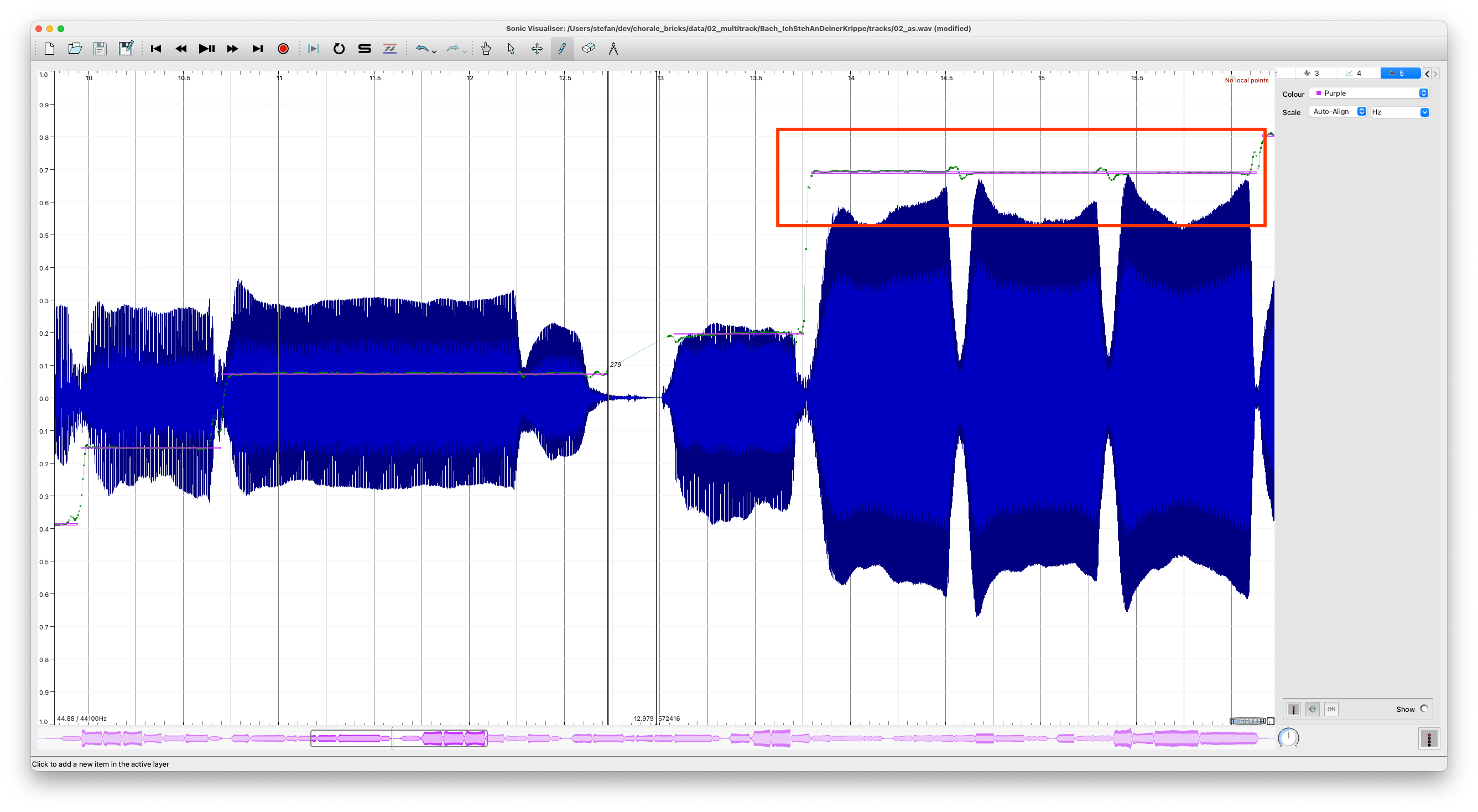

Correctly annotated note events

Octave errors

• Especially at note beginnings, the F0 might be off by an octave (e.g., stemming from onset noises)
• We typically correct the annoation by adding a "Melodic Range Spectrogram" and set the scale to dB^2
• First, remove the wrong F0 trajectory
• Second, redraw the trajectory by following the peaks in the spectrogram

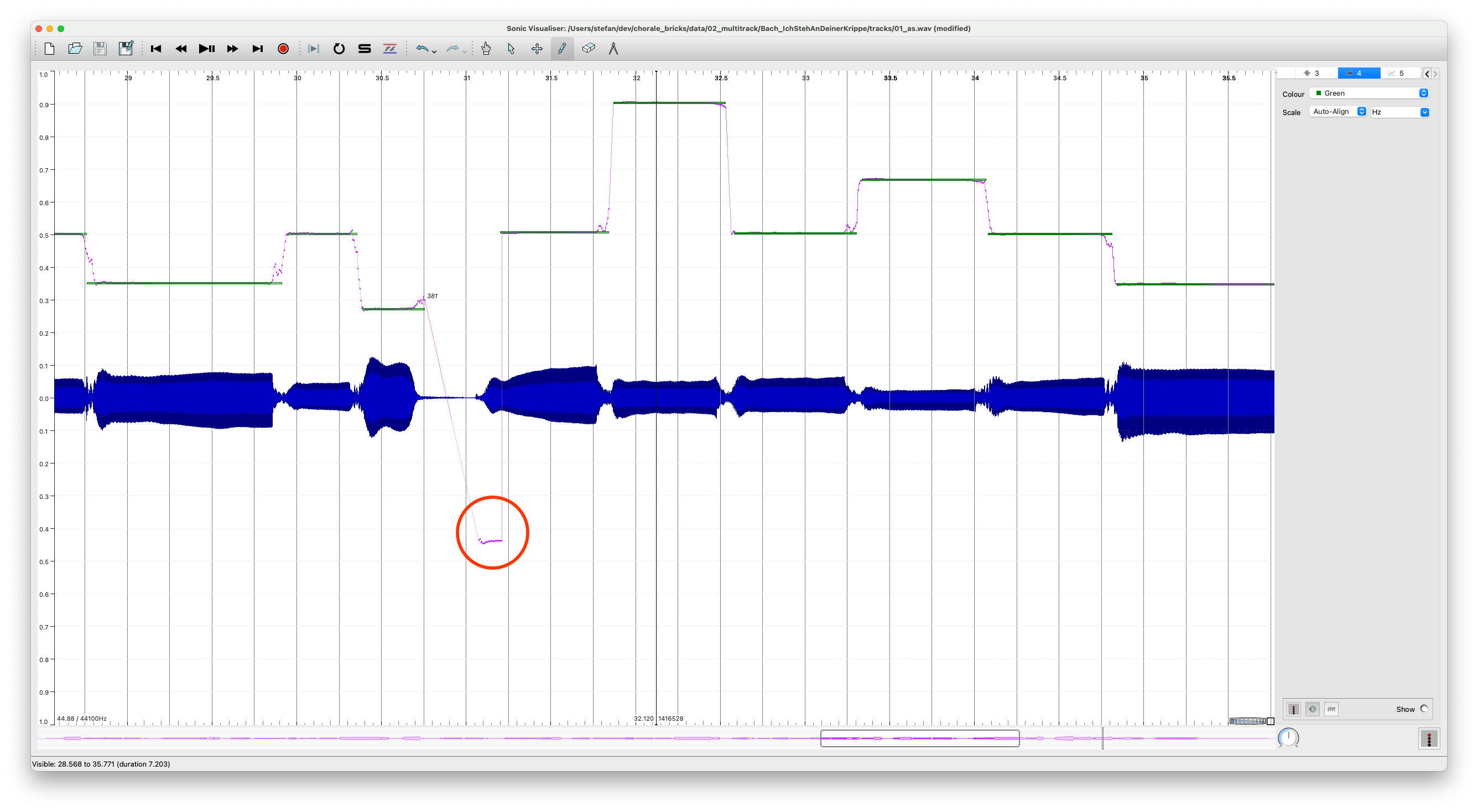

Octave error at the beginning of a note

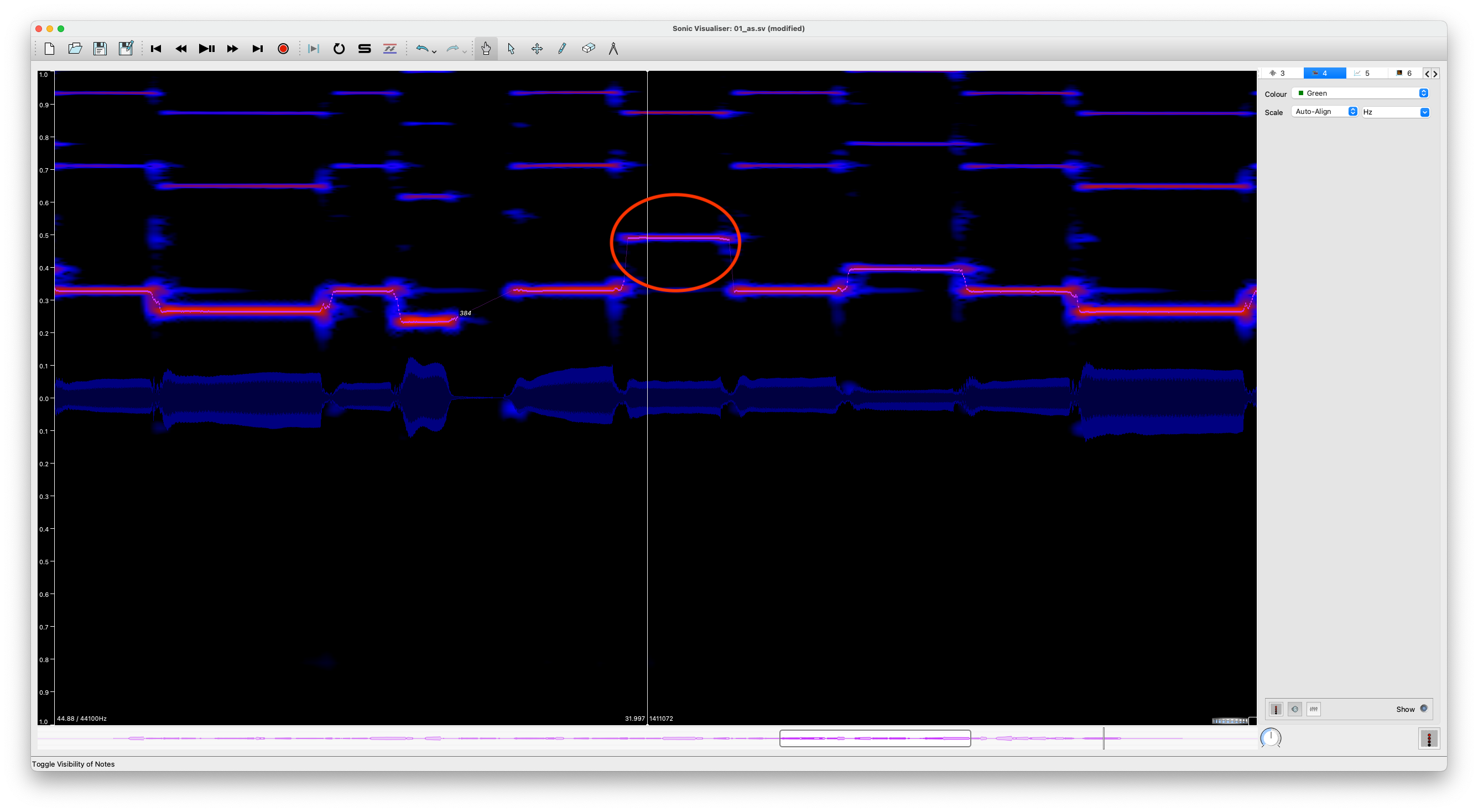

Correctly annotated F0 trajectory on Melodic Range spectrogram
